Produktkategorie: SAE 37 ° Adapter für Bördelverschraubungen
Material: Kohlenstoffstahl, Edelstahl oder Kupferlegierung.

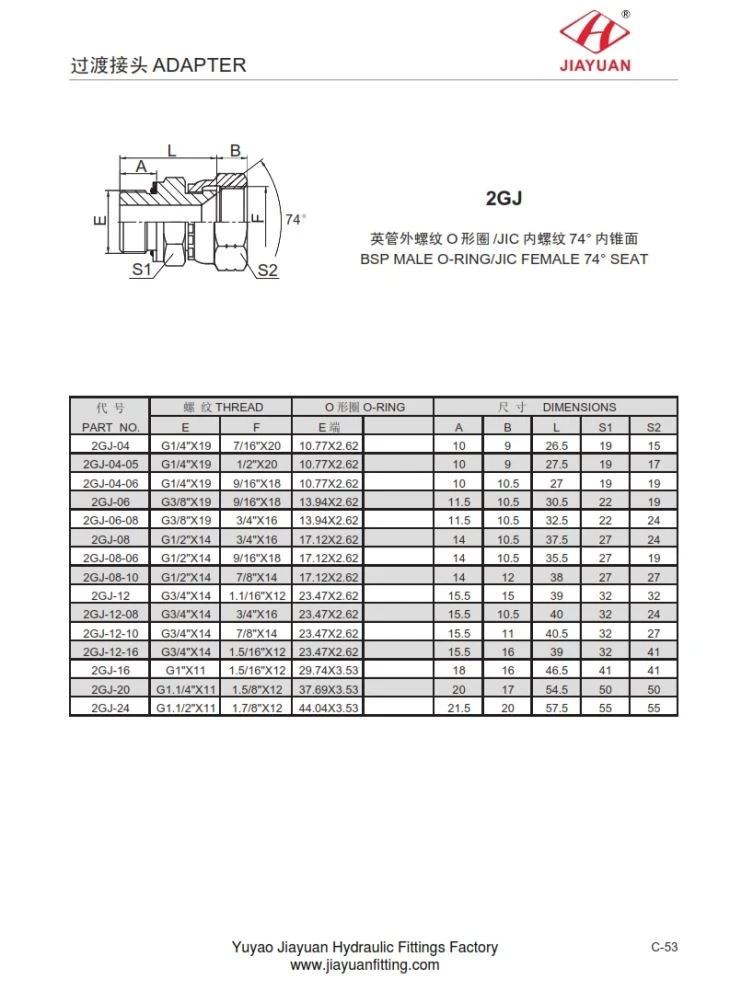

2GJ BSP MALE O-RING / JIC FEMALE 74 ° SITZ Maßtabelle wie folgt:
PA RT Nein . | T HR EA D | O- RING | DIM E N S I O NS | ||||||
E | F | E | EIN | B | L | S 1 | S 2 | ||
2 GJ- 04 | G 1/4 " X 19 | 7/16 " x 20 | 10,77 x 2,62 | 10 | 9 | 26.5 | 19 | fünfzehn | |
2 GJ- 04 - 05 | G 1/4 " X 19 | 1/2 " x 20 | 10,77 x 2,62 | 10 | 9 | 27.5 | 19 | 17 | |
2 GJ- 04 - 06 | G 1/4 " X 19 | 9/16 " X 18 | 10,77 x 2,62 | 10 | 10.5 | 27 | 19 | 19 | |
2 GJ- 06 | G 3/8 " X 19 | 9/16 " X 18 | 13,94 x 2,62 | 11.5 | 10.5 | 30.5 | 22 | 19 | |
2 GJ- 06 - 08 | G 3/8 " X 19 | 3/4 " x 16 | 13,94 x 2,62 | 11.5 | 10.5 | 32.5 | 22 | 24 | |
2 GJ- 08 | G 1/2 " X 14 | 3/4 " x 16 | 17,12 x 2,62 | 14 | 10.5 | 37.5 | 27 | 24 | |
2 GJ- 08 - 06 | G 1/2 " X 14 | 9/16 " X 18 | 17,12 x 2,62 | 14 | 10.5 | 35,5 | 27 | 19 | |
2 GJ-08-10 | G 1/2 " X 14 | 7/8 " X 14 | 17,12 x 2,62 | 14 | 12 | 38 | 27 | 27 | |
2 GJ- 12 | G 3/4 " X 14 | 1,1 / 16 " X 12 | 23,47 x 2,62 | 15.5 | fünfzehn | 39 | 32 | 32 | |
2 GJ-12-08 | G 3/4 " X 14 | 3/4 " x 16 | 23,47 x 2,62 | 15.5 | 10.5 | 40 | 32 | 24 | |
2 GJ-12-10 | G 3/4 " X 14 | 7/8 " X 14 | 23,47 x 2,62 | 15.5 | 11 | 40,5 | 32 | 27 | |
2 GJ-12-16 | G 3/4 " X 14 | 1,5 / 16 " X 12 | 23,47 x 2,62 | 15.5 | 16 | 39 | 32 | 41 | |
2 GJ- 16 | G 1 X 11 | 1,5 / 16 " X 12 | 29,74 x 3,53 | 18 | 16 | 46.5 | 41 | 41 | |
2 GJ- 20 | G 1.1 / 4 " X 11 | 1,5 / 8 " X 12 | 37,69 x 3,53 | 20 | 17 | 54,5 | 50 | 50 | |
2 GJ- 24 | G 1,1 / 2 X 11 | 1,7 / 8 " X 12 | 44,04 x 3,53 | 21.5 | 20 | 57,5 | 55 | 55 | |
