Produkttypen: Hydraulischer Flansch SAE-Adapter 1JFL 1JFS-W
Industriestandards: SAE J518, ISO 6162, SAE J514, ISO 8434-2
Anschlussart E bis F: JIC MALE 74 ° CONE / L-SERIE FLANSCH ISO 6162-1
Form: Ellenbogen, gerade, Block usw.
Betriebsdruck: SAE-Code 61 beträgt 2,5 bis 31,5 MPa; SAE-Code 62 ist 40 Mpa.
Beschlagsmaterial: Messing; Kohlenstoffstahl; Rostfreier Stahl
Anwendung: Landwirtschaftsausrüstung, Automobilprozess, Chemietransfer, Baumaschinen, Kraftstofftransfer, Hydraulik, Produktionsausrüstung, Marine, Materialtransport, mobile Ausrüstung, Ölfeld, Verpackung, Transport

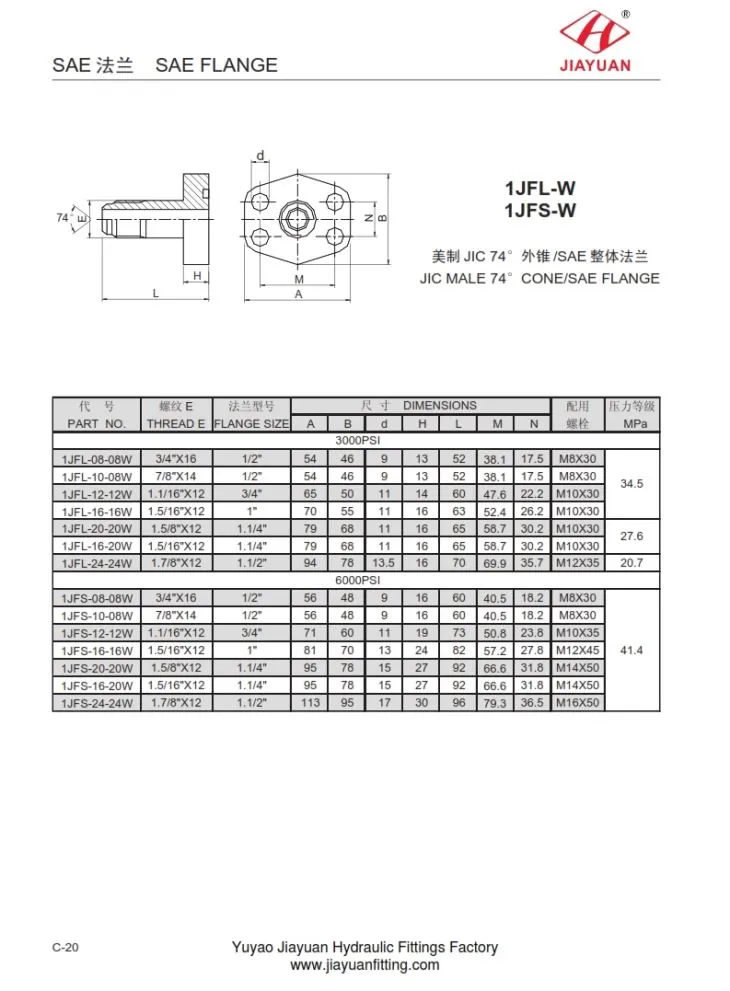

1JFL 1JFS-W JIC männlich 74 ° Konus / SAE Flansch Abmessung Größentabelle wie folgt
TEIL NR. | E GEWINDE E | FLANSCHGRÖSSE | MASSE | MPa | |||||||
EIN | B | d | H | L | M | N | |||||
3000PSI | |||||||||||
1JFL-08-08W | 3/4 "X16 | 1/2 " | 54 | 46 | 9 | 13 | 52 | 38.1 | 17.5 | M8X30 | 34.5 |
1JFL-10-08W | 7/8 "X14 | 1/2 " | 54 | 46 | 9 | 13 | 52 | 38.1 | 17.5 | M8X30 | |
1JFL-12-12W | 1,1 / 16 "X12 | 3/4 " | 65 | 50 | 11 | 14 | 60 | 47.6 | 22.2 | M10X30 | |
1JFL-16-16W | 1,5 / 16 "X12 | 1 " | 70 | 55 | 11 | 16 | 63 | 52.4 | 26.2 | M10X30 | |
1JFL-20-20W | 1,5 / 8 "X12 | 1.1 / 4 " | 79 | 68 | 11 | 16 | 65 | 58,7 | 30.2 | M10X30 | 27.6 |
1JFL-16-20W | 1,5 / 16 "X12 | 1.1 / 4 " | 79 | 68 | 11 | 16 | 65 | 58,7 | 30.2 | M10X30 | |
1JFL-24-24W | 1,7 / 8 "X12 | 1.1 / 2 " | 94 | 78 | 13.5 | 16 | 70 | 69,9 | 35.7 | M12X35 | 20.7 |
6000 psi | |||||||||||
1JFS-08-08W | 3/4 "X16 | 1/2 " | 56 | 48 | 9 | 16 | 60 | 40,5 | 18.2 | M8X30 | 41.4 |
1JFS-10-08W | 7/8 "X14 | 1/2 " | 56 | 48 | 9 | 16 | 60 | 40,5 | 18.2 | M8X30 | |
1JFS-12-12W | 1,1 / 16 "X12 | 3/4 " | 71 | 60 | 11 | 19 | 73 | 50,8 | 23.8 | M10X35 | |
1JFS-16-16W | 1,5 / 16 "X12 | 1 " | 81 | 70 | 13 | 24 | 82 | 57,2 | 27.8 | M12X45 | |
1JFS-20-20W | 1,5 / 8 "X12 | 1.1 / 4 " | 95 | 78 | fünfzehn | 27 | 92 | 66.6 | 31.8 | M14X50 | |
1JFS-16-20W | 1,5 / 16 "X12 | 1.1 / 4 " | 95 | 78 | fünfzehn | 27 | 92 | 66.6 | 31.8 | M14X50 | |
1JFS-24-24W | 1,7 / 8 "X12 | 1.1 / 2 " | 113 | 95 | 17 | 30 | 96 | 79,3 | 36,5 | M16X50 |
